R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine

R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine

  • R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
  • R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
  • R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
  • R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
  • R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
  • R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Yixing ICS
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 1 Sets
Price: $75,000.00
Packaging Details: Wood cases in standard container or less than container load.Each set is wrapped in plywood case and transport in standard container.
Supply Ability: 50 Set/Sets per Quarter
Contact Now
All Products
Flake Ice Maker Machine (75)
Block Ice Maker Machine (63)
Ice Tube Maker Machine (13)
Slurry Ice Machine (18)
Artificial Snowfall Machine (15)
Evaporative Condenser Chiller (11)
Cooler Refrigeration Units (12)
Aluminum Refrigeration Row (5)
Solar Power Containerized Cold Room (11)
Cold Storage Refrigeration Units (2)
Detailed Product Description
Ice Shape: ICE BLOCK Ice Storage Capacity: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United States, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lan Showroom Location: None
Condition: New Voltage: 220-480V Customized
Power: 94.05 Kw Dimension(L*W*H): 15200*2800*2780 Mm (Customized)
Weight: 19010 Kg Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC Name: Automatic Ice Block Making Machine
Product Name: Direct System Ice Block Making Machine Keyword: Ice Block Making Machine
Application: Fresh-keeping Compressor: Germany Bitzer
Refrigerant: R404a/R22 Material: Stainless Steel 304
Cooling Way: Evaporative Cooling Control System: Automatic Control System
Ice Size: 5-50 Kg Customized Port: Shanghai
Highlight:

SS304 Commercial Ice Cube Making Machine

,

25T Commercial Ice Cube Making Machine

,

R404A flake ice machine commercial

China Manufacturer Wholesale Price Commercial 25T/Day Direct System Ice Block Making Machine
Product Description



R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 0

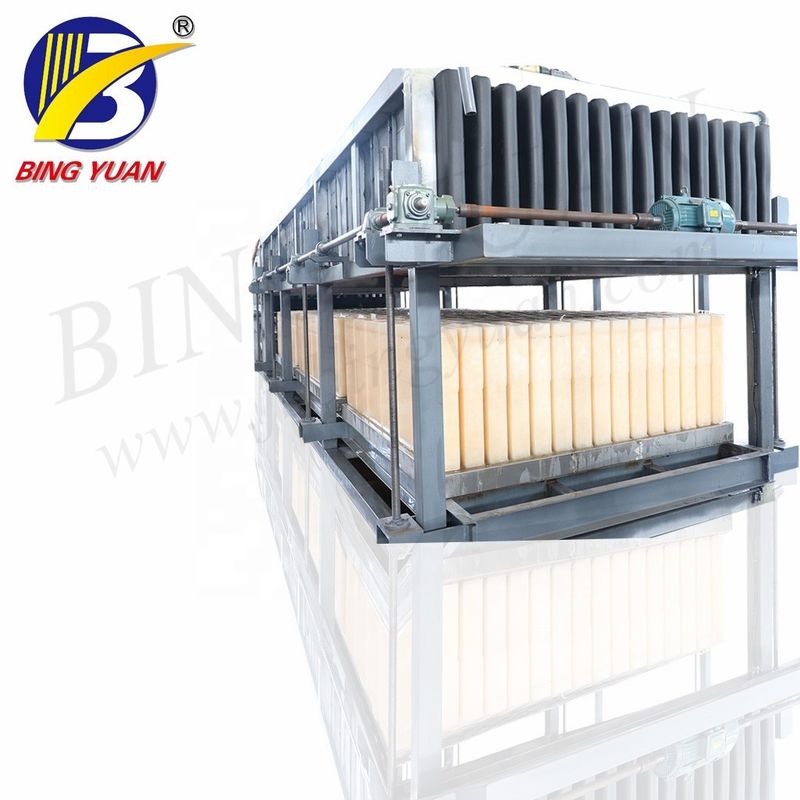

Direct System Block Ice Machine BYB-250D

The direct refrigeration block ice machine adopts food-grade aluminum alloy plate as evaporator material, only though a water feeding valve, the water is filled into the ice cans automatically, no any chemical residues during ice making process. Block ice is kept far away from any pollution, especially produce high quality ice block, which is sanitary and suitable for eating purpose and cooling purpose.This direct block ice maker produces blocks in a few hours, which means that the space requirements are reduced considerably.



Working principle:
Yixing ICS direct system block ice machine adopts edge-leading refrigeration industry technology.

1. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice.

2. By that time, PLC controls the machine automatically into ice doffing process.

3. Direct system utilizes hot Freon to defrost ice; so the defrosting process is fast.

R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 1

Model Daily Capacity Refrigerant Electricity Consumption Install Power Operating Weight Size(L*W*H)
BYB-250D 25T R22/R404A 94.05 kw 120 kw 19010 kg 15200*2800*2780 mm(Customized)

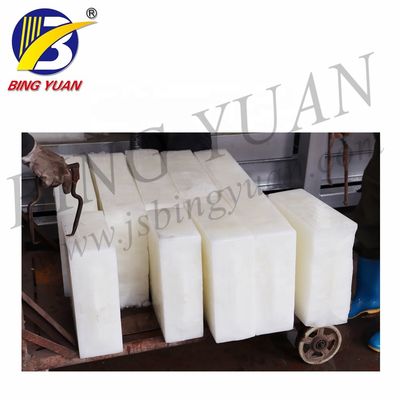

Block Ice Application:

a.Ice factory

b.Fresh preservation

c.Ice engraving;

d.Edible ice
R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 2

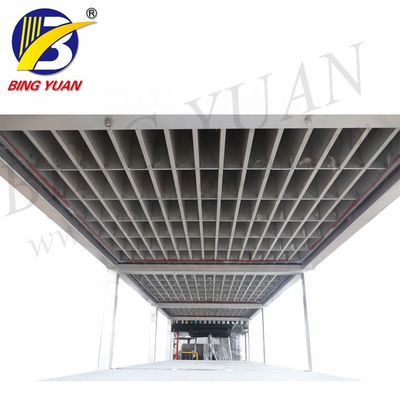

Aluminum evaporator adopts special technique to make sure the ice conforms to food grade standards

In other words, the ice can be directly consumed

Besides saving labor work and electricity consumption, its unique modular design saves much floor area than traditional brine system block ice machine.



R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 3

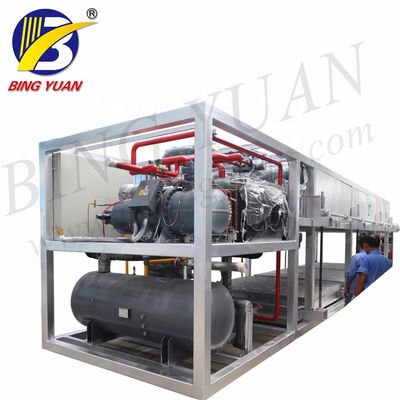

Main Features

1) The evaporator adopts special aluminum alloy plate which is more durable and meets food hygiene requirements.

2) Ice thawing and ice doffing are fully automatic therefore no manual work is needed, 1 person is enough.

3) The ice is doffed by batch and the whole ice doffing process only takes 25 minutes.

4) The whole batch ice blocks can be moved by forklift, or designed with ice moving out device, quick and convenient.



R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 4

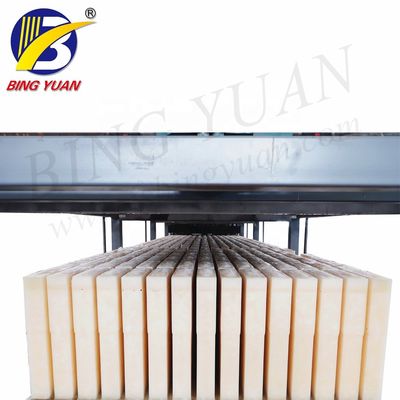

Detailed Images



R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 5

  Forklift  Ice Moving Device

 Original "mobile ice holding plate design", shovel whole ice holding plate out with forklift, each process takes about 3 minutes, saving 90% labor and time to a great extend, highest degree of automation.

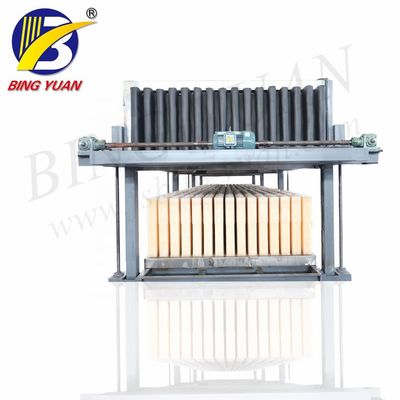

Hydraulic System+Wire Rope Hoisting

Advantages of hydraulic system:

Save more space

Lower noise

Long service life

Small friction

Good balance

               R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 6
R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 7

Automatic characters

Add water automatically
Make ice automatically
Doff ice automatically
Move ice automatically





Below is main specification of this 25 tons daily direct system block ice machine:


Power supply: 380V/3P/50Hz (customized)

Refrigerant: R404A/R22

Weight of each block ice: 50kg/25kg (customized)

Cooling mode: Water Cooling/Evaporative Cooling

Ice doffing time: 25 minutes

Need person to operate: 1 person is enough, fully automatic

Compressor brand: Germany Bitzer

Solenoid Valve brand: Denmark Danfoss

Programmable logic controller: Germany Siemens (tailor-made performance)

Electric parts brand: France Schneider

R404A 25T 94.05KW SS304 Commercial Ice Cube Making Machine 8
