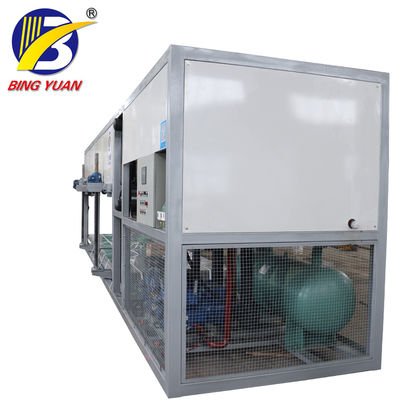

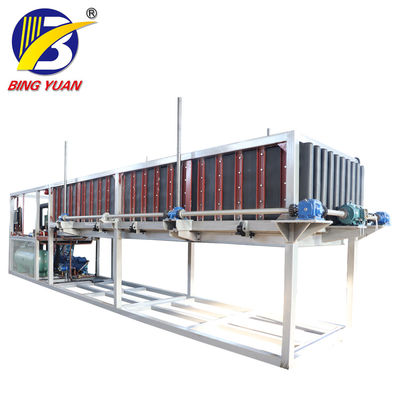

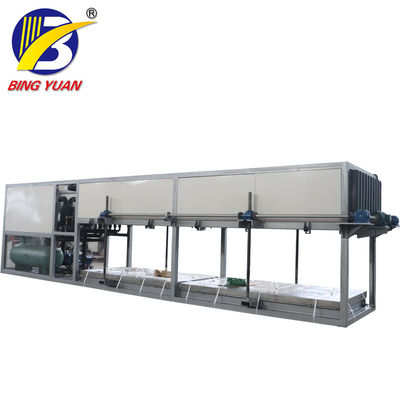

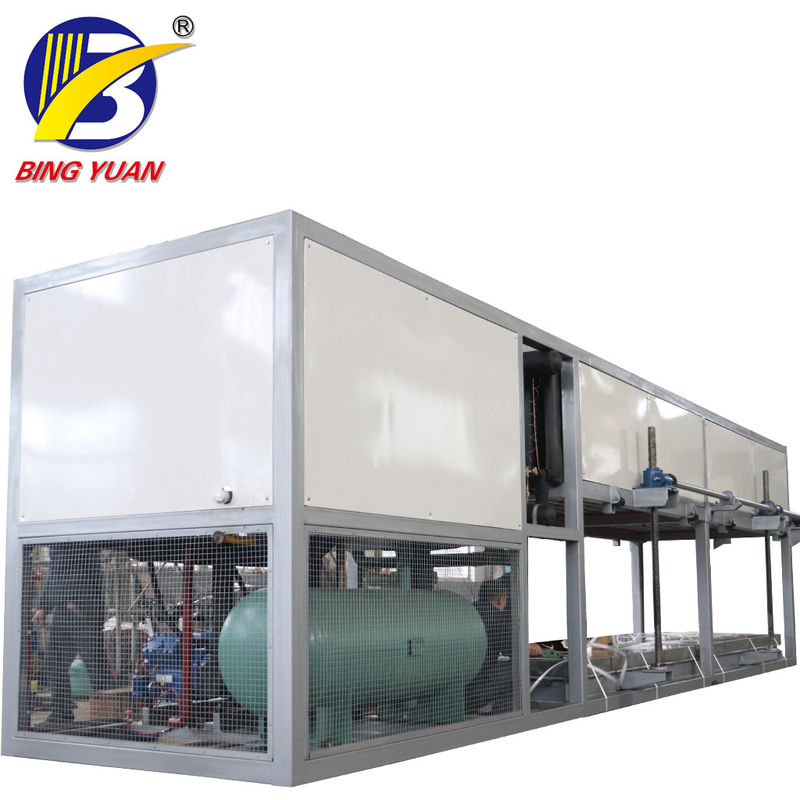

0.5T 220 Volt 50KG Block Ice Maker Machine , Salt Water Ice Block Machine

The direct refrigeration block ice machine adopts food-grade aluminum alloy plate as evaporator material, only though a water feeding valve, the water is filled into the ice cans automatically, no any chemical residues during ice making process. Block ice is kept far away from any pollution, especially produce  quality ice block, which is sanitary and suitable for eating purpose and cooling purpose.This direct block ice maker produces blocks in a few hours, which means that the space requirements are reduced considerably.

Working principle:
Yixing ICS direct system block ice machine adopts edge-leading refrigeration industry technology.

1. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice.

2. By that time, PLC controls the machine automatically into ice doffing process.

3. Direct system utilizes hot Freon to defrost ice; so the defrosting process is fast.

Aluminum evaporator adopts special technique to make sure the ice conforms to food grade standards

In other words, the ice can be directly consumed

Besides saving labor work and electricity consumption, its unique modular design saves floor area than traditional brine system block ice machine

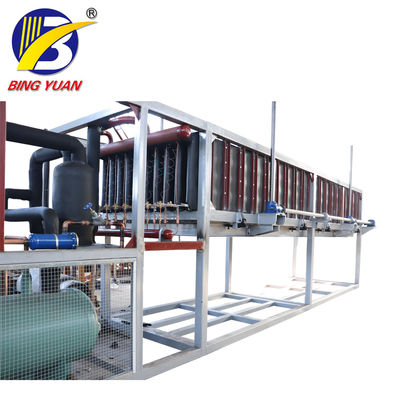

1) The evaporator adopts special aluminum alloy plate which is more durable and meets food hygiene requirements.

2) Ice thawing and ice doffing are automatic therefore no manual work is needed, 1 person is enough.

3) The ice is doffed by batch and the whole ice doffing process only takes 25 minutes.

4) The whole batch ice blocks can be moved by forklift, or designed with ice moving out device, quick and convenient.

Below is main specification of this 30 ton daily direct system block ice machine:

Power supply: 380V/3P/50Hz (customized)

Refrigerant: R404A/R22

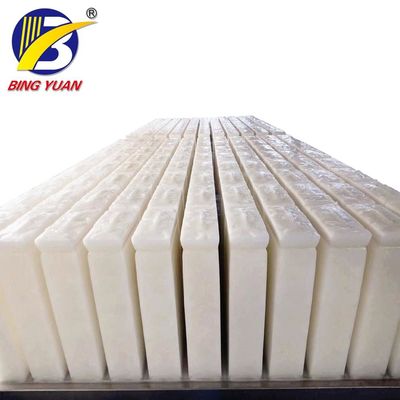

Weight of each block ice: 50kg/25kg (customized)

Cooling mode: Evaporative cooling

Ice doffing time: 25 minutes

Need person to operate: 1 person is enough, fully automatic

Compressor brand: Germany Bitzer

Solenoid Valve brand: Denmark Danfoss

Programmable logic controller: Germany Siemens (tailor-made performance)

Electric parts brand: France Schneider

M.2019.206.C0141

96% Response Rate

94.8% Response Rate

98% Response Rate

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive mordern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
