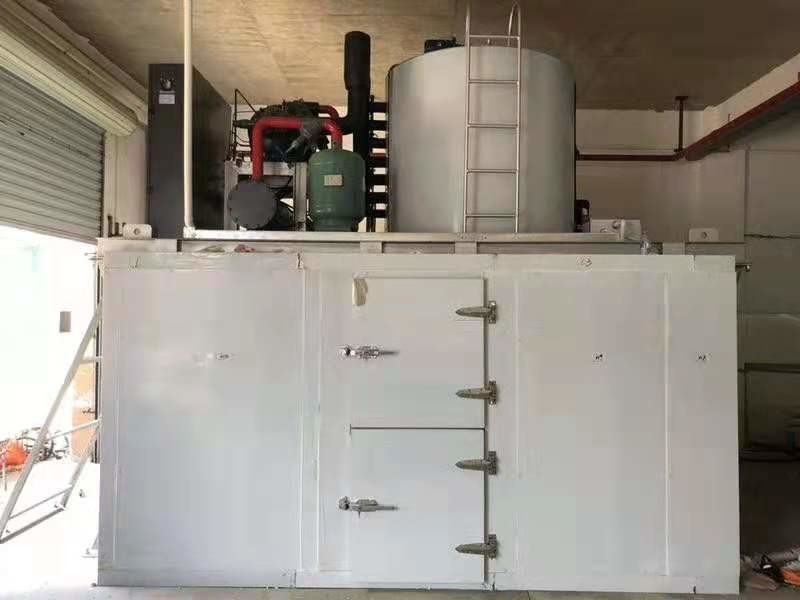

20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery

20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery

  • 20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery
20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Yixing ICS
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $5,000.00 - $100,000.00 / Set
Supply Ability: 50 Set/Sets per Quarter
Contact Now
All Products
Flake Ice Maker Machine (75)
Block Ice Maker Machine (63)
Ice Tube Maker Machine (13)
Slurry Ice Machine (18)
Artificial Snowfall Machine (15)
Evaporative Condenser Chiller (11)
Cooler Refrigeration Units (12)
Aluminum Refrigeration Row (5)
Solar Power Containerized Cold Room (11)
Cold Storage Refrigeration Units (2)
Detailed Product Description
Ice Shape: Flake Ice Condition: New
Voltage: 220~380V Power: 70kw
Dimension(L*W*H): Customize Weight: Depends
Warranty: 1 Year After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Capacity: 10 Ton Name: Flake Ice Making Machine
Compressor: Bitzer Cooling Way: Evaporative Cooling
Application: Fresh-keeping/fishery Material: SUS304 Staineless Steel
Refrigerant: R404a/R22 Expansion Valve: Danfoss Brand
Control System: PLC+Touch Screen Solenoid Valve: Saginomiya (Japan)
Type: Automatic Flake Ice Machine
High Light:

20tons/Day Industrial Flake Ice Machine

,

R404a Refrigerant Industrial Flake Ice Machine

,

20tons/Day ice flake making machine

FLAKE ICE MACHINE FROM BAOPIN FACTORY
Flake ice also called Chips ice, Slice ice, shaved ice. It's mainly suitable for supermarket, wholesale seafood, exclusive private clubs, restaurant, meat processing industry, food processing industry and fish processing industry, ect.

Flake ice machine Application industry:
Flake ice machine can be used in small-scale aquatic products, meat processing, slaughtering and processing industries, vegetable distribution and fresh-keeping, marine fishery/aquatic products industry, concrete mixing engineering, chemical industry,Ice
factory etc. .
Model
Output(kg/24H)
Ice storage
Voltage
Power
Dimension(L*W*H)
Gross weight
BP-0.2T
200KG
150KG
220V
1.5KW
800*800*1665mm
135KG
BP-0.3T
300KG
150KG
220V
1.76KW
800*800*1665mm
180KG
BP-0.4T
400KG
200KG
380V
2.16KW
201220*1080*1805mm
180KG
BP-0.5T
500KG
400KG
380V
2.88KW
1220*1080*1805mm
220KG
BP-0.8T
800KG
400KG
380V
4.76KW
1320*1180*2005mm
240KG
BP-1T
1000KG
400KG
380V
4.76KW
1310*960*2000mm
430KG
BP-1.2T
1200KG
400KG
380V
5.6KW
1320*1260*1900mm
440KG
BP-1.4T
1400KG
500KG
380V
6.38KW
1320*1260*1900mm
450KG
BP-1.5T
1500KG
500KG
380V
7.42KW
1320*1260*1900mm
470KG
BP-2T
2000KG
600KG
380V
9.25KW
1590*1470*2380mm
490KG
BP-2.5T
2500KG
600KG
380V
10.32KW
1590*1470*2500mm
490KG
BP-3T
3000KG
800KG
380V
12.91KW
1550*1380*2550mm
570KG
BP-5T
5000KG
5000KG
380V
23.12KW
1800*1800*3410mm
770KG
BP-10T
10000KG
No ice bin
380V
45.5KW
2530*1830*1835mm
1550KG
BP-20T
20000KG
No ice bin
380V
75.8KW
3695*2090*2235mm
2900KG
BP-25T
25000KG
No ice bin
380V
97.8KW
3690*2090*2485mm
3100KG
BP-30T
30000KG
No ice bin
380V
115.7KW
3880*2120*2595mm
3250KG

Special design of flake ice machine:

1. Refrigerating unit -- Compressor are imported from America, Germany, Japan. 2. PLC programmable control system -- The whole system is controlled automatically well without hand operation. 3. Evaporator-- made of SUS304/316 material and adopts automatic fluorine welding technology. 4. Ice blade--Spiral ice blade, small resistance, low loss, no noise and making ice in uniform.
PRODUCT SPECIFICATIONS
TECHNICAL DATA
Model
MIF5T-R4A
The technical data based on
25℃ambient temp.
20℃water inlet temp.
The evaporating temperature
-20℃
The condensing temperature
38℃
Power supply
3P/380V/50Hz
The ice thickness
1.6-2.3mm
Refrigerant
R404A
Daily Output(Ton/24hrs)
5tons
Cooling Capacity(kw)
38.7
General Power(kw)
22.55
Compressor Input(kw)
20.5
Reductor Power(kw)
0.37
Cooling Mode
Air Cooling
Water Inlet/ Drain Pipe
3/4”;1/2"
Weight(kg)
980
Dimension(mm)
2030*1500*1470
20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 0
Flake ice is a kind of irregular ice with size about 40*40 mm and thickness around 1-2 mm.

The thin ice can be directly used for stirring and mixing refrigerated materials.

Besides, flake ice has no acute edges and corners so it will not damage the surface of cooled object.

With large contact area and fast cooling speed, flake ice can realize high efficiency cooling effects.

SPECIFICATIONS FOR 1 TON FLAKE ICE MACHINE
MODEL
DAILY CAPACITY
REFRIGERANT
OPERATING POWER
OPERATING WEIGHT
BYF-10AS
1 TON
R404A
5KW
200KG
20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 2

Main Features

1) Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.

2) stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.

3) The design of large water receiving plate can prevent water leaking at the bottom of evaporator

4) Direct liquid feeding and dry evaporation, simple&safe to control.

5) Integrated modular design, convenient to install and maintain.

20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 4
Detailed Images
20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 6
20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 8



Flake ice is easy to crush and mold, with almost zero damage to the cooled products.

The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology.



20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 10







The internally scraping ice making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant.

20tons/Day R404a R22 Refrigerant Industrial Flake Ice Machine For Fishery 12
