Home ProductsFlake Ice Maker Machine

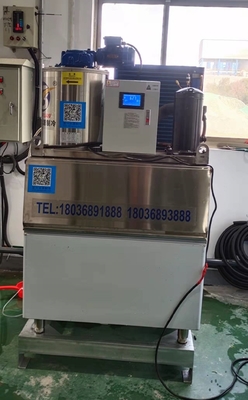

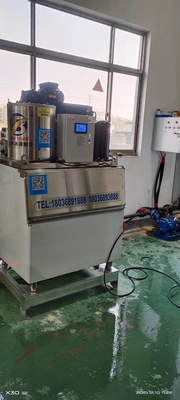

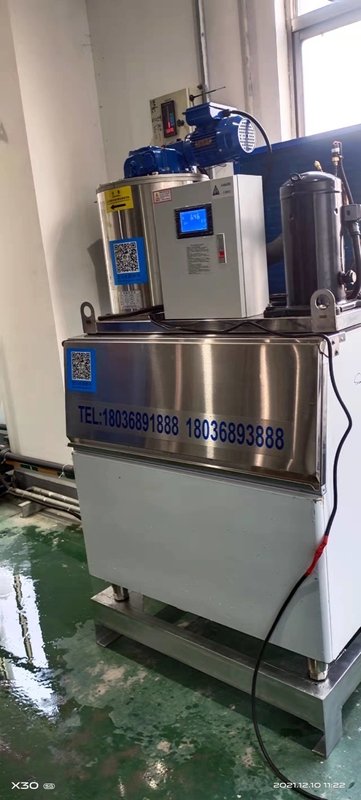

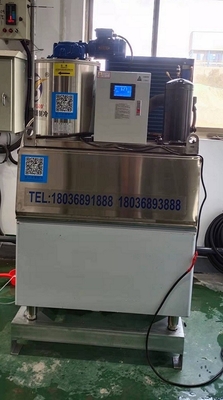

High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker

High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker

  • High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker
  • High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker
  • High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker
  • High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker
Product Details:
Place of Origin: Yixing ICS
Brand Name: Yixing ICS
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 2 Sets
Price: $29,000.00
Packaging Details: Wood cases in standard container or less than container load.Each set is wrapped in plywood case and transport in standard container.
Supply Ability: 100 Set/Sets per Month
Contact Now
All Products
Flake Ice Maker Machine (75)
Block Ice Maker Machine (63)
Ice Tube Maker Machine (13)
Slurry Ice Machine (18)
Artificial Snowfall Machine (15)
Evaporative Condenser Chiller (11)
Cooler Refrigeration Units (12)
Aluminum Refrigeration Row (5)
Solar Power Containerized Cold Room (11)
Cold Storage Refrigeration Units (2)
Detailed Product Description
Ice Shape: Flake Ice Ice Storage Capacity: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea Showroom Location: None
Condition: New Voltage: 220V/380V
Power: 2.7kw - 124.3kw Dimension(L*W*H): Customized
Weight: 200kg Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC Product Name: Yixing ICS Flake Ice Machine
Compressor: Bitzer/Bock Application: Fresh-keeping/seafood
Keyword: Flake Ice Maker Cooling Way: Air Cooling
Refrigerant: R404a/R22 Material: Stainless Steel 304
Type: Automatic Flake Ice Machine Ice Size: Irregular Ice
Port: Shanghai
High Light:

Flack Ice Making Machine 0.5ton

,

0.5ton Flake Ice Maker

,

High Productivity Flack Ice Making Machine

Product Description
The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use space to store ice. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.

Main Features

1. The ice rake machine adopts modular design, which is easy to assemble and maintain; the parts are processed by CNC machine tools with high precision and avoid welding defects. 2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life. 3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum. 4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position. 5. Smart electric control screen, simple and easy to use. 6. Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time, which is convenient for maintenance and management and safe production.
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 0
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 1
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 2
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 3

Flake Ice Machine Evaporator

The internal structure of the evaporator is specially designed to improve heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally scrapping ice making mode has been adopted, which reduces the loss of the energy and avoids leakage the refrigerant.
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 4
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 5
Specification of all types of Flake Ice Machine Yixing ICS Produces
Model
Daily Capacity
Electricity Consumption
Install Power
Operating Weight
Dimention
BYF-05
0.5T
2.56kw
2.2kw
208kg
1200*740*590mm
BYF-08
0.8T
4.43kw
2.8kw
235kg
1200*740*650mm
BYF-10
1T
5.16kw
4.2kw
380kg
1200*740*780mm
BYF-15
1.5T
7.72kw
5kw
450kg
1560*1200*880mm
BYF-20
2T
11.17kw
6.5kw
480kg
1560*1200*960mm
BYF-25
2.5T
12.62kw
8kw
550kg
1650*1200*1150mm
BYF-30
3T
14.35kw
10kw
680kg
1560*1200*1150mm
BYF-50
5T
17.72kw
22kw
1250kg
2200*1050*1550mm
BYF-80
8T
25.55kw
30kw
1800kg
3400*1550*1800mm
BYF-100
10T
34.31kw
42kw
2200kg
3550*1550*2050mm
BYF-120
12T
38.8kw
55kw
3000kg
3720*1650*2050mm
BYF-150
15T
49.35kw
69kw
3600kg
4000*1850*2400mm
BYF-200
20T
60.4kw
86kw
4200kg
4200*2000*2914mm
BYF-250
25T
78.85kw
110kw
5500kg
4500*2000*2450mm
BYF-300
30T
102.45kw
125kw
6800kg
5200*2200*3000mm
BYF-350
35T
115.35kw
140kw
7600kg
5200*2200*3200mm
BYF-400
40T
147.35kw
180kw
8900kg
5600*2400*3600mm
BYF-500
50T
176.3kw
220kw
9800kg
5800*2500*4500mm
BYF-600
60T
214.9kw
280kw
10500kg
6400*2500*4500mm
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 6
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 7
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 8
Detailed Images


1) Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2) stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer
efficiency.
3) The design of large water receiving plate can prevent water leaking at the bottom of evaporator.


High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 9
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 10






4) Direct liquid feeding and dry evaporation, simple and safe to control.
5) Integrated modular design, convenient to install and maintain.
6) Flake ice is easy to crush and mold, with almost zero damage to the cooled products.


7)The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop
unblocked with special processing technology.
8)The internally scraping ice making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant.
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 11
Related Products

Certificate
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 12
CE
M.2019.206.C0141
Packing&Shipping

Standard export packing

Wood cases in standard container or less than container load
Each set is wrapped in plywood case and transport in standard container
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 13
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 14
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 15
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 16
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 17
Our Services

Pre-sale service

* Inquiry and consulting support
* Sample testing support
* View our Factory

After-sale service

* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
Company Introduction
Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 18
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 19
High Productivity Flack Ice Making Machine 0.5ton Large Flake Ice Maker 20
