3800KG 480 Volt R404A Solar Power Containerized Cold Room

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yixing ICS
Certification:	ce

Payment & Shipping Terms:

Minimum Order Quantity:	1 - 2 Pieces
Price:	$37,000.00
Packaging Details:	Wood cases in standard container or less than container loadEach set is wrapped in plywood case and transport in standard container
Supply Ability:	1 Set/Sets per Month

Contact Now

All Products

Flake Ice Maker Machine (75)

Block Ice Maker Machine (63)

Ice Tube Maker Machine (13)

Slurry Ice Machine (18)

Artificial Snowfall Machine (15)

Evaporative Condenser Chiller (11)

Cooler Refrigeration Units (12)

Aluminum Refrigeration Row (5)

Solar Power Containerized Cold Room (11)

Cold Storage Refrigeration Units (2)

Detailed Product Description

Ice Shape:	Other	Ice Storage Capacity:	22ton
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, A	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	None	Showroom Location:	None
Condition:	New	Voltage:	220~480V Customized
Power:	Depends	Dimension(LWH):	1219224382591mm
Weight:	3800kg	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support	Key Selling Points:	Automatic
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC	Product Name:	Yixing ICS Containerized Cold Room
Type:	Containerized Cold Room	Material:	Stainless Steel Sheet
Compressor:	Bizter	Refrigerant:	R404a/R22a
Application:	Air Conditioning/Fresh Keeping/Freezer	External Dimension:	1219224382591mm
Internal Dimension:	1203223502390mm	Temperature:	-60°C~+20°C Adjustable
Port:	Shanghai
High Light:	3800kg Solar Power Containerized Cold Room , 20t Solar Power Containerized Cold Room , R404A solar cold storage

Container Cold Room, Fish/Meat/Food Transportation Cold Room Freezer, 40TEUs Containerized Cold Room

Product Description

Yixing ICS Containerized Cold Room

Choice in every part of our cold room:
1. The evaporator is divided into aluminum alloy pipe row and cold air blower.
2. Insulation layer thickness ranges from 50~220 mm, it also depends on the temperature of the cold room.
3. The material of our cold room plate: stainless steel/color steel/galvanized steel (inside or outside).
4. Brand of compressor: Bitzer/Bock/Fusheng/Hanzhong/Danfoss/Copeland etc.
We can customize the cold room as totally as your demands.

Specification of Containerized Cold Room

Container type	20TEUs	40TEUs
External Dimension	609824382591mm	1219224382591mm
External Volume	38.52m³	77.053m³
Internal Dimension	589823502390mm	1203223502390mm
internal volume	33.1m³	67.6m³
Dead Weight	2200kg	3800kg
Load	21800kg	26680kg

Features and advantages

1. Concave convex structure
Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air
tight joints. There's no need of rivets, thus reduce the cost and save the time.

2. Easier and faster installation, can be expended or removed in the future.

3. heat insulation
density thermos insulated PUR foam up to 38kg/m³or above for cold-room heat insulation efficiency.

4. Various surface steel choices.
Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet. The standard metal sheets are all smooth. Standard color of steel sheet is white-

gray, others are natural metallic.

5. Low flammable
Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.

6. hermetical
Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure sealing to avoid the cooling air leakage
from the cool room or moisture inside the PU insulated panel for the refrigeration and frozen storage result.

7. Load bearing
The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.

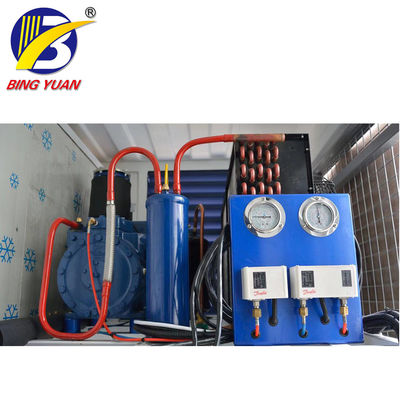

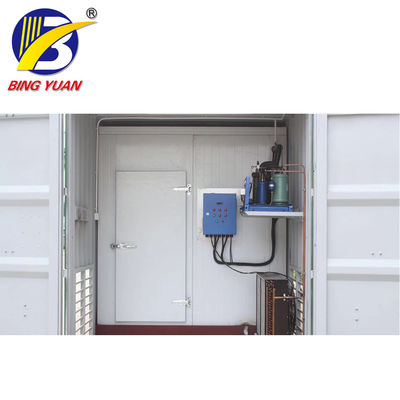

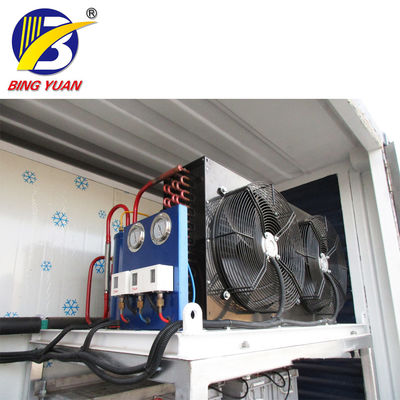

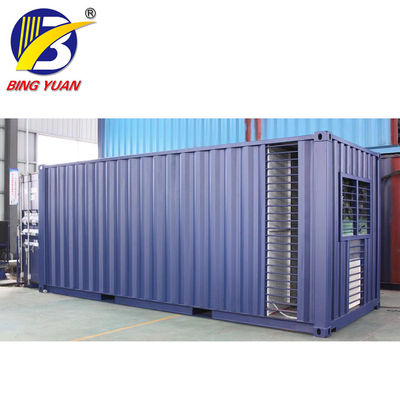

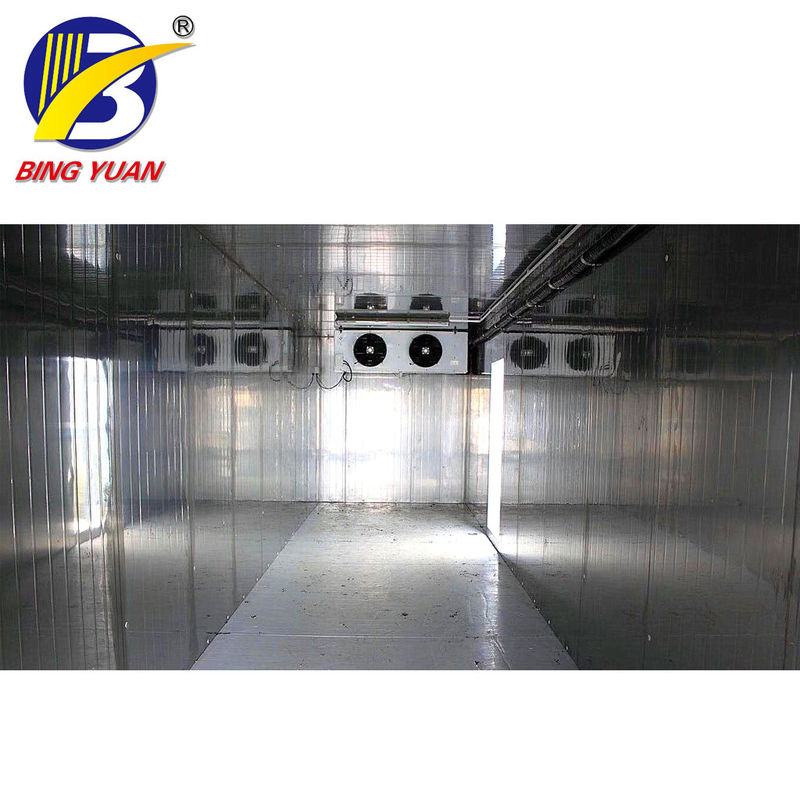

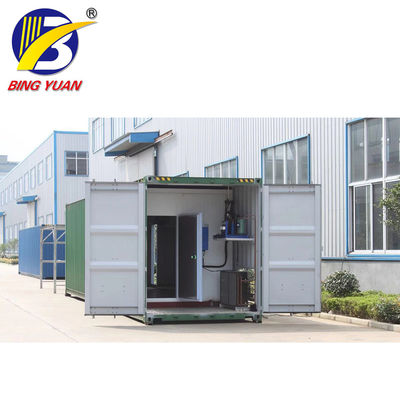

Detailed Images

1) Energy-saving design, performance and efficiency, saving electricity in large degree.

2) Remote intelligent management system, automatic precision digital controller is easy to operate with high efficiency.

3) Imported European compressor, low noise and high reliability, world renowned brand refrigeration accessories guaranteeing
longer service life.
4) Adjustable indoor temperature, according to cooled products to adjust the suitable temperature.

Standard export packing

Wood cases in standard container or less than container load

Each set is wrapped in plywood case and transport in standard container

Our Services

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas

Company Introduction

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds of ice-making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row, and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in the Chinese market, we focus on technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking the truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
