Automatic 1500 Watt R404A Evaporative Cooling Equipment

Automatic 1500 Watt R404A Evaporative Cooling Equipment

  • Automatic 1500 Watt R404A Evaporative Cooling Equipment
  • Automatic 1500 Watt R404A Evaporative Cooling Equipment
  • Automatic 1500 Watt R404A Evaporative Cooling Equipment
  • Automatic 1500 Watt R404A Evaporative Cooling Equipment
  • Automatic 1500 Watt R404A Evaporative Cooling Equipment
  • Automatic 1500 Watt R404A Evaporative Cooling Equipment
Automatic 1500 Watt R404A Evaporative Cooling Equipment
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Yixing ICS
Certification: ce, RoHS, ETL
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 2 Sets
Price: $3,000.00
Packaging Details: Wood cases in standard container or less than container loadEach set is wrapped in plywood case and transport in standard container
Supply Ability: 1 Set/Sets per Month
Contact Now
All Products
Flake Ice Maker Machine (75)
Block Ice Maker Machine (63)
Ice Tube Maker Machine (13)
Slurry Ice Machine (18)
Artificial Snowfall Machine (15)
Evaporative Condenser Chiller (11)
Cooler Refrigeration Units (12)
Aluminum Refrigeration Row (5)
Solar Power Containerized Cold Room (11)
Cold Storage Refrigeration Units (2)
Detailed Product Description
Ice Shape: Other Ice Storage Capacity: None
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None Showroom Location: None
Condition: New Voltage: 380V/220V
Power: Depends Dimension(L*W*H): Customized
Weight: Depends Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC Product Name: Yixing ICS Evaporative Condenser
Type: Condenser Material: Stainless Steel 304
Compressor: Bitzer Refrigerant: R404a/R22a
Color: Silver Water Pump Power: 1.5~5.5 Kw
Water Flow Volume: 55~180 M3/h Axial Fan Air Volume: 65000 M3/h
Tube Material: Stainless Steel Coil Port: Shanghai
High Light:

R404A Evaporative Cooling Equipment

,

1.5KW Evaporative Cooling Equipment

,

380V evaporative cooling tower

Energy Saving Eco-Friendly Cost Effective Evaporator Condenser for Cold Room

Product Description

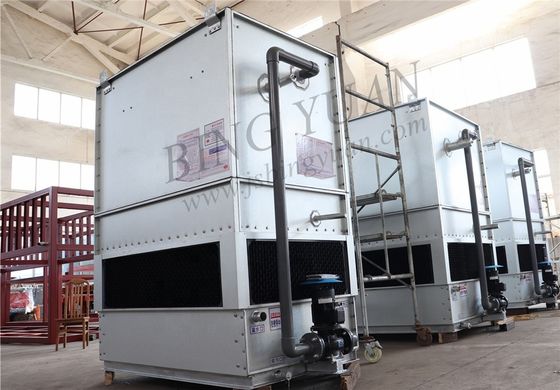

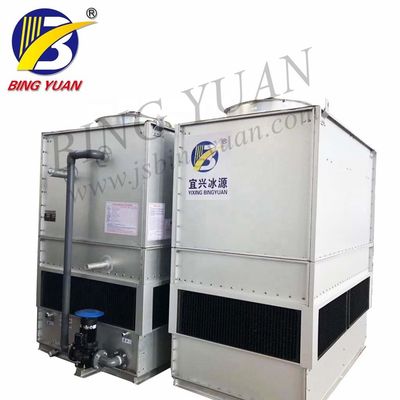

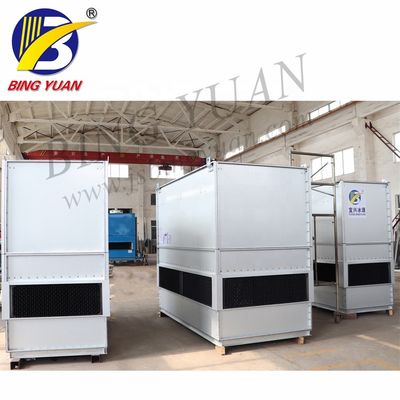

Yixing ICS Evaporative Condenser

Evaporative condenser is a efficiency heat exchange equipment developed by absorbing and upgrading the advanced heat exchange technology abroad. The evaporative condenser is the main heat exchange equipment in the refrigeration system. Its principle is that the heated and high pressure refrigerant gas discharged from the compressor in the refrigeration system passes through the condensing tube in the evaporative condenser, so that the high temperature gaseous refrigerant is exchanged with the spray water and air outside the exhaust pipe. That is, the gaseous refrigerant is gradually condensed into liquid refrigerant from top to bottom through the upper inlet. The strong wind force of the auxiliary draught fan makes the spray water evenly cover the surface of the coil, and the water greatly improves the heat exchange effect by the wind.

Automatic 1500 Watt R404A Evaporative Cooling Equipment 0
Automatic 1500 Watt R404A Evaporative Cooling Equipment 1
Automatic 1500 Watt R404A Evaporative Cooling Equipment 2
Automatic 1500 Watt R404A Evaporative Cooling Equipment 3
Automatic 1500 Watt R404A Evaporative Cooling Equipment 4
The temperature rising of the spray water from the part into the gaseous state, the use of water vaporized latent heat to take away a large amount of heat by the wind, the water droplets in the hot gas are intercepted by efficiency dehydrator, and the rest of the water absorbed by the heat, scattered to the heat exchange layer of PVC dripping water, cooling through the air, lowering the temperature, entering the water tank, and then circulating water pump. Continue to circulate. The moisture evaporated into the air is automatically replenished by the water level regulator.
Detailed Images
Automatic 1500 Watt R404A Evaporative Cooling Equipment 5
Automatic 1500 Watt R404A Evaporative Cooling Equipment 6
Automatic 1500 Watt R404A Evaporative Cooling Equipment 7

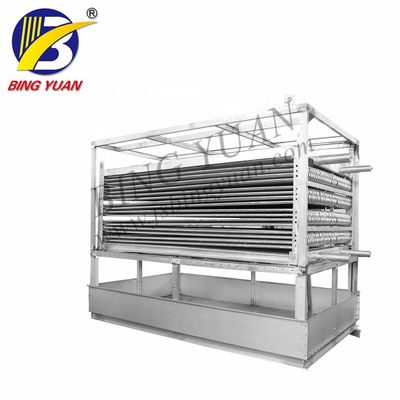

The condensing coils are made of long specially designed steel pipes, which are tested by 2.5MPa air pressure in water, and hot dip zinc at high temperatures near 430 degrees.
The box adopts imported or homemade quality galvanized sheet. Electrostatic spraying technology can be used, and stainless steel plate can be used in the sink.

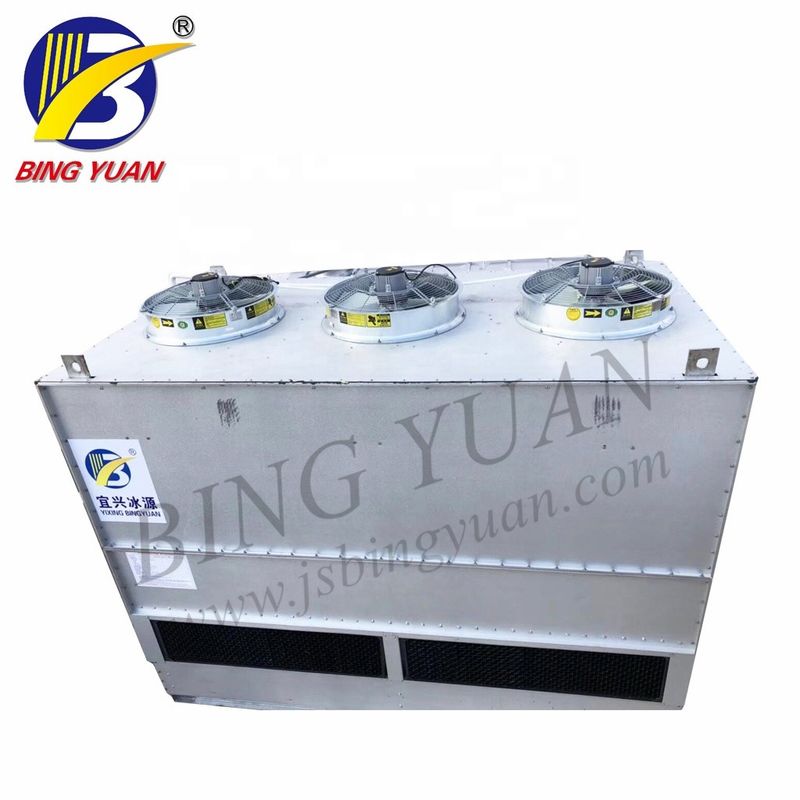

The fan selects a special efficiency and low noise axial flow fan. The special fan has a high range and prevents hot air from returning.


The water pump uses the small power, the big flow, the low lift is the outdoor type design, and may assemble the scale removal
instrument according to the customer request.
Automatic 1500 Watt R404A Evaporative Cooling Equipment 8
Automatic 1500 Watt R404A Evaporative Cooling Equipment 9
The water cloth, efficiency water collector and the cooling filler used the large flow and anti blockage nozzles to accurately calculate the continuous and uniform coverage, eliminate the water film "dry point" of the pipe wall, the quality PVC material, the aging resistance and the wind resistance small ditch like water absorbent. The water flow rate is controlled below 0.001%, the
cooling filler is the honeycomb type cross flow structure. Suitable for circulating water cooling.

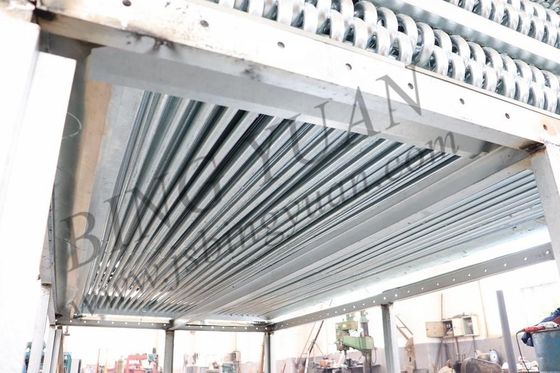

The condensing coil is made of quality 25 mm seamless steel pipe, and the design pressure is 1.97 Mpa.
Automatic 1500 Watt R404A Evaporative Cooling Equipment 10
Automatic 1500 Watt R404A Evaporative Cooling Equipment 11


The tightness test of 2.5 Mpa was carried out three times in water to ensure that the coil was not leaked.
After the assembly was completed, it was treated by thick hot dip galvanizing.
The coil is inclined along the direction of refrigerant to facilitate liquid discharge, and the coil pressure decreases.
Product Presentation
Model
Nominal heat Discharge

Axial Fan

Circulating Water Pump

Operating Weight

kw
set
air volume (m³/h)
Power (kw)
Water flow (m³/h)
kw
kg
BYZNX-375
375
1
65000
4
55
1.5
4100
BYZNX-430
430
1
65000
4
55
1.5
4300
BYZNX-475
475
1
65000
4
55
1.5
4650
BYZNX-495
495
1
71000
5.5
55
1.5
4660
BYZNX-550
550
1
63500
4
80
2.2
5500
BYZNX-595
595
1
78000
5.5
80
2.2
5510
BYZNX-670
670
1
78000
5.5
80
2.2
5800
BYZNX-700
700
1
78000
5.5
80
2.2
5800
BYZNX-735
735
1
87000
7.5
80
2.2
6820
BYZNX-780
780
1
80000
5.5
80
2.2
7200
BYZNX-870
870
1
100000
7.5
80
2.2
7220
BYZNX-900
900
1
2*65000
2*4
110
3
7500
BYZNX-960
960
1
2*65000
2*4
110
3
7900
BYZNX-1000
1000
1
2*71000
2*5.5
110
3
8000
BYZNX-1050
1050
1
2*79000
2*7.5
110
3
8100
BYZNX-1165
1165
1
2*63500
2*4
140
4
8800
BYZNX-1285
1285
1
2*78000
2*5.5
140
4
8820
BYZNX-1335
1335
1
2*87000
2*7.5
140
4
8840
BYZNX-1420
1420
1
2*78000
2*4
140
4
11000
BYZNX-1490
1490
1
2*87000
2*7.5
140
4
11020
BYZNX-1575
1575
1
3*65000
3*4
140
4
11500
BYZNX-1620
1620
1
3*71000
3*5.5
140
4
11620
BYZNX-1690
1690
1
3*79000
3*7.5
140
4
11640
BYZNX-1765
1765
1
3*78000
3*5.5
180
5.5
14900
Automatic 1500 Watt R404A Evaporative Cooling Equipment 12
Automatic 1500 Watt R404A Evaporative Cooling Equipment 13
Certificate
Automatic 1500 Watt R404A Evaporative Cooling Equipment 14




CE
M.2019.206.C0141
Related Products

Packing&Shipping
Wood cases in standard container or less than container load Each set is wrapped in plywood case and transport in standard container
Automatic 1500 Watt R404A Evaporative Cooling Equipment 15
Automatic 1500 Watt R404A Evaporative Cooling Equipment 16
Automatic 1500 Watt R404A Evaporative Cooling Equipment 17
Our Services
Pre-sale service
* Inquiry and consulting support
* Sample testing support
* View our Factory.
After-sale service
* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
Company Introduction
Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
Automatic 1500 Watt R404A Evaporative Cooling Equipment 18
Automatic 1500 Watt R404A Evaporative Cooling Equipment 19
Automatic 1500 Watt R404A Evaporative Cooling Equipment 20
