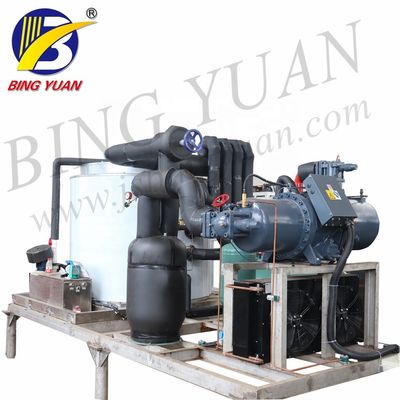

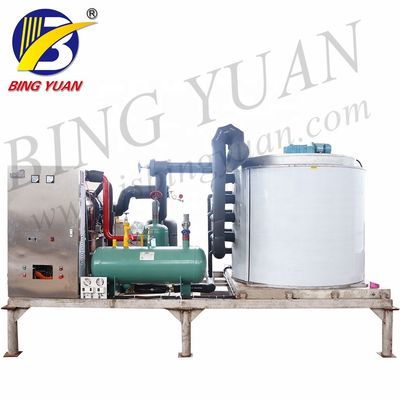

Evaporative Cooling 15 Tonne Flake Ice Maker Machine

Evaporative Cooling 15 Tonne Flake Ice Maker Machine

  • Evaporative Cooling 15 Tonne Flake Ice Maker Machine
  • Evaporative Cooling 15 Tonne Flake Ice Maker Machine
  • Evaporative Cooling 15 Tonne Flake Ice Maker Machine
  • Evaporative Cooling 15 Tonne Flake Ice Maker Machine
  • Evaporative Cooling 15 Tonne Flake Ice Maker Machine
  • Evaporative Cooling 15 Tonne Flake Ice Maker Machine
Evaporative Cooling 15 Tonne Flake Ice Maker Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Yixing ICS
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 2 Sets
Price: $17,000.00
Packaging Details: Wood cases in standard container or less than container loadEach set is wrapped in plywood case and transport in standard container
Supply Ability: 1 Set/Sets per Month
Contact Now
All Products
Flake Ice Maker Machine (75)
Block Ice Maker Machine (63)
Ice Tube Maker Machine (13)
Slurry Ice Machine (18)
Artificial Snowfall Machine (15)
Evaporative Condenser Chiller (11)
Cooler Refrigeration Units (12)
Aluminum Refrigeration Row (5)
Solar Power Containerized Cold Room (11)
Cold Storage Refrigeration Units (2)
Detailed Product Description
Ice Shape: Flake Ice Ice Storage Capacity: None
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, A After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None Showroom Location: None
Condition: New Voltage: 220/380V
Power: 7.72kw Dimension(L*W*H): 1560*1200*880 Mm
Weight: 450kg Warranty: 1 Year
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, PLC Product Name: Yixing ICS Flake Ice Machine
Material: Stainless Steel Compressor: Bitzer
Refrigerant: R404a/R22a Expansion Valve: Demark Danfoss
Cooling Way: Air/Water/Evaporative Cooling Application: Fresh-keeping/meat Processing
Ice Size: Irregular Ice Ice Outlet Temperature: -5℃
Ice Thickness: 1.5~2mm Port: Shanghai
High Light:

15T Flake Ice Maker Machine

,

15000kg Flake Ice Maker Machine

,

7.72kw fish ice maker

High Quality Flake Ice Making Machine, Automatic Ice Maker 15T/Day Capacity

Product Description

Flake Ice machine

Yixing ICS fresh water flake ice machine is widely used in food processing, fruit and vegetables preservation, meat processing, medical research and etc. Seawater flake ice machine is designed for large ocean-going fishing industry which could overcome the corrosion of seawater, pitching and swing problems of vessels. Flake ice is a kind of irregular ice with size about 40*40 mm and
thickness around 1-2 mm. The thin ice can be directly used for stirring and mixing refrigerated materials. Besides, flake ice has no acute edges and corners so it will not damage the surface of cooled object. With large contact area and fast cooling speed, flake ice can realize high efficiency cooling effects.
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 0
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 1
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 2
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 3

Flake Ice Machine Evaporator

The internal structure of the evaporator is specially designed to improve heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally scrapping ice making mode has been adopted, which reduces the loss of the energy and avoids leakage the refrigerant.
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 4
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 5
Specification of all types of Flake Ice Machine Yixing ICS Produces
Model
Daily Capacity
Electricity Consumption
Install Power
Operating Weight
Dimention
BYF-05
0.5T
2.56kw
2.2kw
208kg
1200*740*590mm
BYF-08
0.8T
4.43kw
2.8kw
235kg
1200*740*650mm
BYF-10
1T
5.16kw
4.2kw
380kg
1200*740*780mm
BYF-15
1.5T
7.72kw
5kw
450kg
1560*1200*880mm
BYF-20
2T
11.17kw
6.5kw
480kg
1560*1200*960mm
BYF-25
2.5T
12.62kw
8kw
550kg
1650*1200*1150mm
BYF-30
3T
14.35kw
10kw
680kg
1560*1200*1150mm
BYF-50
5T
17.72kw
22kw
1250kg
2200*1050*1550mm
BYF-80
8T
25.55kw
30kw
1800kg
3400*1550*1800mm
BYF-100
10T
34.31kw
42kw
2200kg
3550*1550*2050mm
BYF-120
12T
38.8kw
55kw
3000kg
3720*1650*2050mm
BYF-150
15T
49.35kw
69kw
3600kg
4000*1850*2400mm
BYF-200
20T
60.4kw
86kw
4200kg
4200*2000*2914mm
BYF-250
25T
78.85kw
110kw
5500kg
4500*2000*2450mm
BYF-300
30T
102.45kw
125kw
6800kg
5200*2200*3000mm
BYF-350
35T
115.35kw
140kw
7600kg
5200*2200*3200mm
BYF-400
40T
147.35kw
180kw
8900kg
5600*2400*3600mm
BYF-500
50T
176.3kw
220kw
9800kg
5800*2500*4500mm
BYF-600
60T
214.9kw
280kw
10500kg
6400*2500*4500mm
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 6
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 7
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 8
Detailed Images


1) Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2) stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer
efficiency.
3) The design of large water receiving plate can prevent water leaking at the bottom of evaporator.


Evaporative Cooling 15 Tonne Flake Ice Maker Machine 9
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 10






4) Direct liquid feeding and dry evaporation, simple and safe to control.
5) Integrated modular design, convenient to install and maintain.
6) Flake ice is easy to crush and mold, with almost zero damage to the cooled products.


7)The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop
unblocked with special processing technology.
8)The internally scraping ice making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant.
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 11
Related Products

Certificate
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 12
CE
M.2019.206.C0141
Packing&Shipping

Standard export packing

Wood cases in standard container or less than container load
Each set is wrapped in plywood case and transport in standard container
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 13
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 14
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 15
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 16
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 17
Our Services

Pre-sale service

* Inquiry and consulting support
* Sample testing support
* View our Factory

After-sale service

* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
Company Introduction
Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 18
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 19
Evaporative Cooling 15 Tonne Flake Ice Maker Machine 20
